Features: 1. Intelligent Drive-monitoring System The digital intelligent drive-monitoring system of our diesel forklift truck can facilitate obtaining the operation data of the diesel forklift easily, so as to achieve the whole-process control of the forklift. 2. Full Hydraulic Flexible Steering System The full hydraulic steering system of our diesel forklifts can greatly reduce the fatigue of the operator. The steering system uses a horizontal oil cylinder on the compact steering axle and guarantees a reliable steering. 3. Classical Space Frame Structure Our diesel forklift truck uses the classical YTO ASF space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate. 4. Good Rear-view Visibility The big arc design of the counterweight can improve the visibility of rear view and guarantee the optimum visibility when driving reversely. 5. Good-view Mast The optimized rail section design of the mast enables the driver to enjoy a good and wide view.

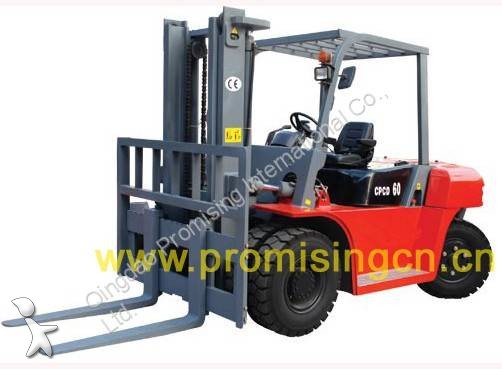

Technical Specifications: Model: CPCD60 Power Type: Diesel Rated Capacity: 6000kg Load Center: 600mm Lifting Height: 3000mm Mast Tilt Angel (F/R): 6/12 deg. Front Overhang: 590mm Wheel Base: 2250mm Wheel Tread (F/R): 1470/1700mm Dead Weight: 8570kg Free Lift Height: 195mm Min. Turning Radius: 3300mm Min. Ground Clearance - Under Mast: 195mm Min. Ground Clearance - Wheelbase Center: 200mm Service Brake: Hydraulic Foot Pedal Parking Brake: Mechanical Hand Lever Lifting Speed (full-load): 350mm/s Lowering Speed: Full-load < 600mm/s, No-load > 300mm/s Travel Speed (no-load): 21km/h Max. Gradeability (full-load): 20% Max. Tractive Force (no-load): 42/32kN Weight Distribution with load (F/R): 12940/1630kg Weight Distribution without Load (F/R): 3930/4640kg Engine Model: LR4B3-24 Engine Manufacturer: YTO Engine Rated Power: 64kW/2400rpm Max. Torque/rpm of Engine: 288N•m/1700rpm Engine Displacement: 4.578L Battery Voltage: 24V Battery Capacity: 2X100Ah Gearbox Transmission Type: Hydraulic torque converter Gear Shift (F/R): II/II Tyre Type: Pneumatic Tyres Tyre Model - Front: 8.25-15-14PR Tyre Model - Rear: 8.25-15-14PR Fork Dimension: 60x150x1220mm Overall Length (without fork): 3510mm Overall Width: 1995mm Overall Height Mast Extended: 4365mm Overall Height Mast Lowered: 2500mm Overall Height Overhead Guard: 2470mm
Note: 1. Technical specifications are for standard models only. 2. Other optional accessories, functions and requirements are available upon request. 3. All specifications and design characteristics are subject to change without prior notice.
